| Place of Origin: | China |
| Brand Name: | Wangtong |
| Certification: | ISO9001 |
| Model Number: | PX20+++ |
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | negotiable |
| Packaging Details: | blister box + carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union |
| Product Name: | EPON PON Module | Data Rate: | 1.25g |
|---|---|---|---|
| Wavelength: | 1310/1490/1550nm | Transmission Distance: | 20km |
| Types Of Interface: | SC | Launching Power: | 3-5dBm, 5-7dBm |
| Fiber Mode: | Single Mode | Class: | PX20+, PX20++, PX20+++ |
| Highlight: | sfp bidirectional transceiver,sfp optical module |
||
Gepon Olt Sfp Optical Transceiver 1.25g 20km PX20+ PX20++ PX20+++
Description
1.Compatible IEEE 802.3ah 1000BASE-PX20/PX20+/PX20+++ GEPON application
2.Applied to EPON OLT for a Single Fiber Bi-directional EPON System
3.SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
4.Burst Digital Receiving Signal Strength Indication (RSSI)
5.Single 3.3V power supply
6.Operating case temperature: -10~70°C
7.RoHS-6 compliance
Ordering Information
| Ordering P/Ns | Description |
| D24355-SSCB | EPON OLT PX20+ Diplexer, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, -10~70°C Commercial temperature, V1 version mechanical housing. |
| D24355-SSEB | EPON OLT PX20+ Diplexer, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, -25~85°C Extended Temperature, V1 version mechanical housing. |
| D24355-SSHB | EPON OLT PX20+ Diplexer, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, -40~85°C Industrial Temperature, V1 version mechanical housing. |
| D24355-SSCD | EPON OLT PX20+ Diplexer, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, -10~70°C Commercial temperature, V2 version mechanical housing. |
| D24355-SSED | EPON OLT PX20+ Diplexer, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, -25~85°C Extended Temperature, V2 version mechanical housing. |
| D24355-SSHD | EPON OLT PX20+ Diplexer, 20km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, -40~85°C Industrial Temperature, V2 version mechanical housing. |

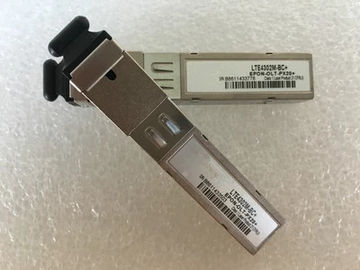

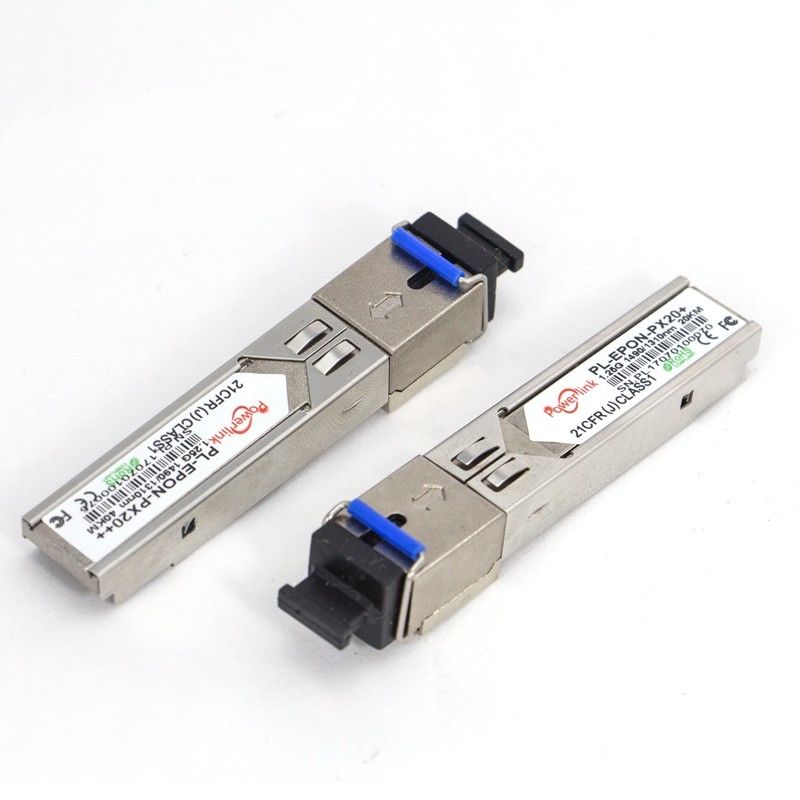

Product Pictures
