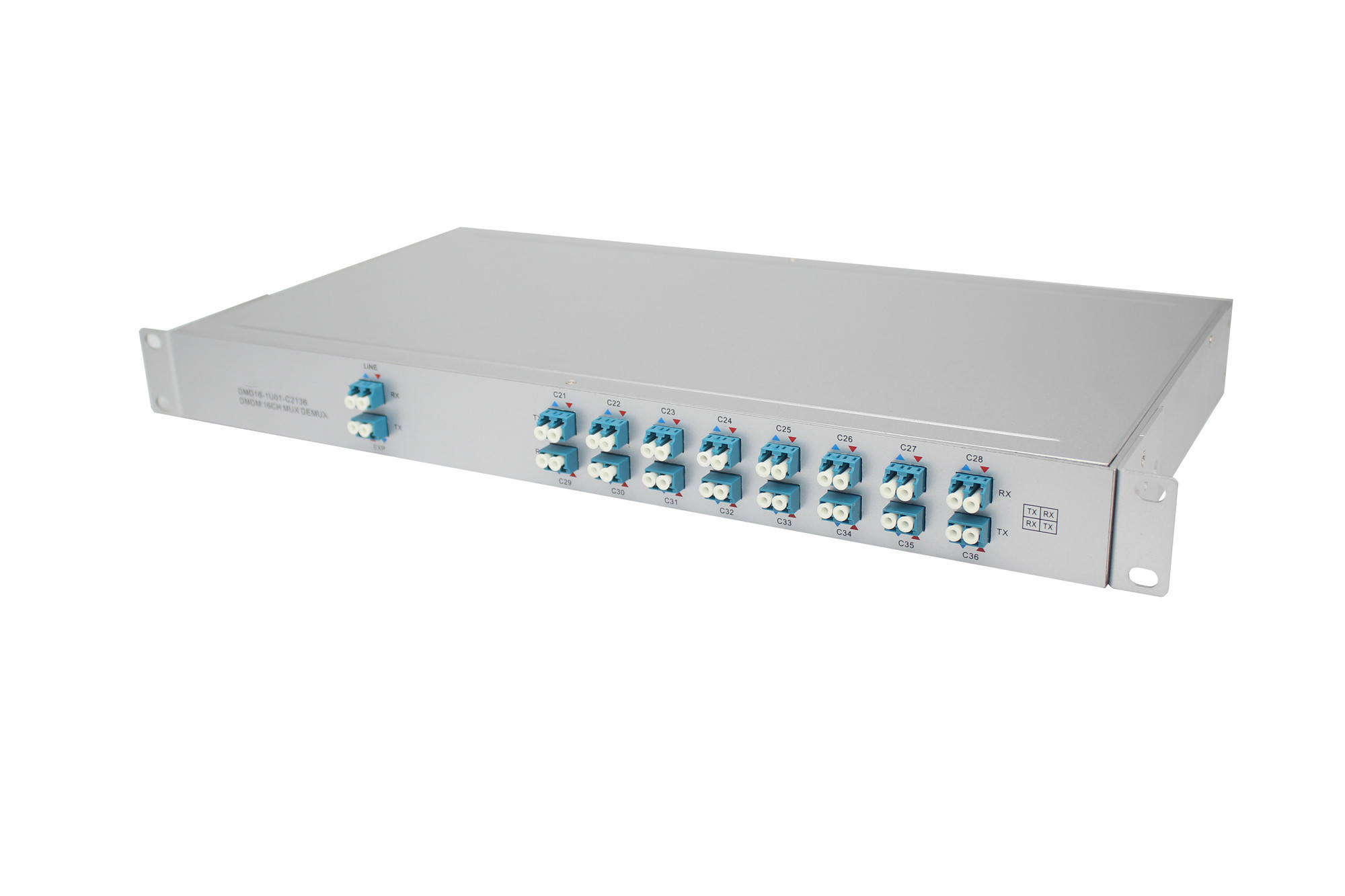

DWDM MUX DEMUX 1U Rack For Reference Wavelength Division Multiplexer
Product Description
CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
Powerlink provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice
Feature
Application
Parameter
| Parameters | ||||
| Channels | 8CH | 16CH | ||
| Center Wavelength (nm) | ITU, C-band | |||
| Passband (nm) | ITU±0.13 | |||
| Operating Wavelength (nm) | DWDM C-band | |||
| Channel Space (nm) | 0.8nm 100GHZ | |||
| Fiber Type | SMF-28e or customer specified | |||
| IL (dB) | 2.4 | 3.8 | ||
| Isolation (dB) | Adjacent Channel | ≥30 | ||
| Non-Adjacent Channel | ≥ 40 | |||
| PDL (dB) | ≤ 0.2 | |||
| PMD (ps) | ≤ 0.2 | |||
| RL (dB) | ≥ 45 | |||
| Directivity (dB) | ≥ 50 | |||
| Maximum Optical Power (mw) | ≤ 500 | |||
| Operating Temperature ()℃ | -20～75 | |||
| Storage Temperature ()℃ | -40～85 | |||
| 1U Rack Package | Weight | 1.5kg | ||
| Dimensions | 1U Rack 19” inch 440*230*44MM | |||
Notes: Specified with connectors.
Order Information
| NO. | PART NAME | PART NO. | Product Des. |
| Dual fiber | |||
| 1 | DWDM Devices | PL-DMD8-1U01-C2128 | DWDM MUX DEMUX 8ch (C21-C28nm) with Express Port Dual fiber LC/UPC 1U Rack |
| 2 | DWDM Devices | PL-DMD8-1U01-C3138 | DWDM MUX DEMUX 8ch (C31-C38nm) with Express Port Dual fiber LC/UPC 1U Rack |
| 3 | DWDM Devices | PL-DMD16-1U01-C2136 | DWDM MUX DEMUX 16ch (C1-C36nm) with Express Port Dual fiber LC/UPC 1U Rack |
| 4 | DWDM Devices | PL-DMD16-1U01-C3146 | DWDM MUX DEMUX 16ch (C31-C46nm) with Express Port Dual fiber LC/UPC 1U Rack |
| Single fiber(used in pair) | |||
| 1 | DWDM Devices A | PL-DM8-1U01-C2128 | DWDM MUX/DEMUX 4ch 8wavelengths (TX C21-C24/ RX C25-C28) with Express port single fiber LC/UPC 1U Rack |
| DWDM Devices B | PL-DD8-1U01-C2128 | DWDM MUX/DEMUX 4ch 8wavelengths (TX C25-C28/ RX C21-C24) with Express port single fiber LC/UPC 1U Rack | |
| 2 | DWDM Devices A | PL-DM8-1U01-C3138 | DWDM MUX/DEMUX 4ch 8wavelengths (TX C31-C34/ RX C35-C38) with Express port single fiber LC/UPC 1U Rack |
| DWDM Devices B | PL-DD8-1U01-C3138 | DWDM MUX/DEMUX 4ch 8wavelengths (TX C35-C38/ RX C31-C34) with Express port single fiber LC/UPC 1U Rack | |
| 3 | DWDM Devices A | PL-DM16-1U01-C2136 | DWDM MUX/DEMUX 8ch 16wavelengths (TX C21-C28/ RX C29-C36) with Express port single fiber LC/UPC 1U Rack |
| DWDM Devices B | PL-DD16-1U01-C2136 | DWDM MUX/DEMUX 8ch 16wavelengths (TX C29-C36/ RX C21-C28) with Express port single fiber LC/UPC 1U Rack | |
| 4 | DWDM Devices A | PL-DM16-1U01-C3146 | DWDM MUX/DEMUX 4ch 8wavelengths (TX C31-C38/ RX C39-C46) with Express port single fiber LC/UPC 1U Rack |
| DWDM Devices B | PL-DD16-1U01-C3146 | DWDM MUX/DEMUX 4ch 8wavelengths (TX C29-C46/ RX C39-C46) with Express port single fiber LC/UPC 1U Rack | |
| Others | Support Customized Design, please contact us by email sales@fiberwdm.com | ||
