| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | wangtong |
| Certification: | ISO9001:2008,ROHS |
| Model Number: | Media converter |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | carton box |
| Delivery Time: | 3 -10 working day(s) after payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Prs/ per month |
| Product Name: | 10/100/1000M SF Media Converter | Transmission Rate: | 10/100/1000M |
|---|---|---|---|
| Fiber Port: | SC | Distance: | 20KM |
| Weight: | 0.6kgs/pair | Fiber Mode: | Single Fiber |
| Highlight: | ethernet network switch,poe network switch |
||
10/100/1000M Ethernet Media Converter Gigabit Single Fiber 20KM Optical Media Converter
Description
The series media converter comply with IEEE 802.3/ab Gigabit Ethernet standard. It supports two types of media for networkconnection such as 10/100/1000 Base-Tto 1000 Base SX/LX and connects these twotypes of segments to operate smoothly OPT-3200 series can be used in 16 slotchassis as plug in module OPT-3200series Fiber Media Converter transforms 1000Base-T (Copper Gigabit) media to1000Base-SX/LX (Fiber Gigabit) media and vice versa. The 1000Base-T portsupports full-duplex Gigabit connection at wire speed with RJ45 connector. Thefiber Gigabit connection supports shortwave (SX) or long wave (LX) laser opticwith multi-mode or single-mode SC type connector.
This converter will give your Copper Gigabit connection the ability to interface with fiber connection over adistance up to 80 km! 10/100/1000means, that media converter that converts the electrical signal of a10/100/1000 Ethernet signal from copper to fiber. This solution will offer alow-cost integration option for network managers who want to migrate from10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connectedto 10/100 networks without the need to upgrade the 10/100 side, allowingnetwork managers to add new equipment gradually.
Product Features
ŸComplies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3xauto-negotiation
ŸWorks at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplex mode
ŸExtends distances ranging from 550m(multi-mode fiber) to 120km(single-mode fiber)
ŸSupports auto MDI/MDIX function
ŸStatus LED for easy monitoring of device status
ŸSupports jumbo frame size 9K bytes
ŸExternal power supply
ŸSupports independent LFP function
ŸFCC Class A & CE approved
Technical Specification
| Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter | ||
| Number of Network Ports | 1 channel | |
| Number of Optical Ports | 1 channel | |
| NIC Transmission Rate | 10/100 /1000Mbit/s | |
| NIC Transmission Mode | 10/100/1000M adaptive with support for automatic inversion of MDI/MDIX | |
| Optical Port Transmission Rate | 1000Mbit/s | |
| Operating Voltage | AC 220V or DC +5V | |
| Overall Power | <1W | |
| Network Ports | RJ45 port | |
| Optical Specifications | Optical Port: SC | |
| Data Channel | IEEE802.3x and collision base backpressure supported | |
| Some Product Modes and port Technical Parameters of Optical Port | ||

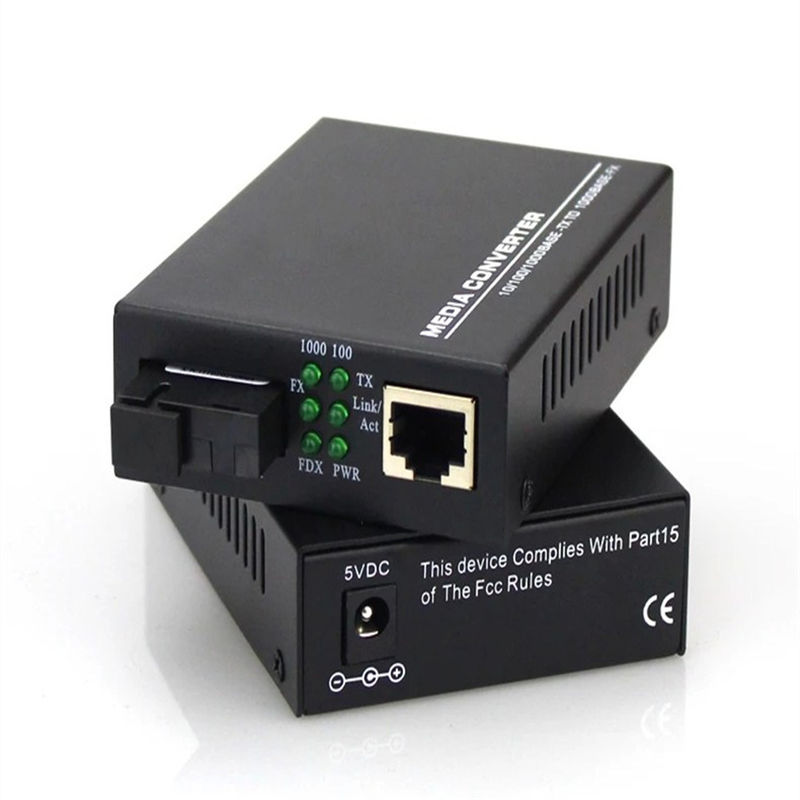

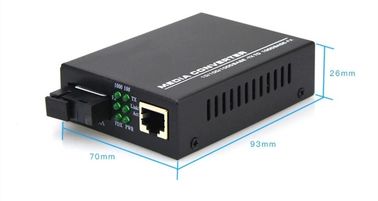

Product Pictures
