FTTH Waterproof Assembly Fiber Fast Connector For Fiber Optic Splice Closure

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	wangtong
Certification:	ISO9001:2008,ROHS
Model Number:	fiber optic connector-FC

Payment & Shipping Terms:

Minimum Order Quantity:	10 pc
Price:	negotiable
Packaging Details:	blister package
Delivery Time:	2 working day(s) after payment received
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000 Pack/Packs per Day

Contact Now

Detailed Product Description

Product Name:	FC Fiber Optic Fast Connector	Application:	FTTH FTTB FTTX Network
Fiber Mode:	SM/MM	Connector Type:	FC
Certification:	ISO9001:2008	Insertion Loss:	0.3dB
High Light:	lc quick connector , fiber optic quick connector

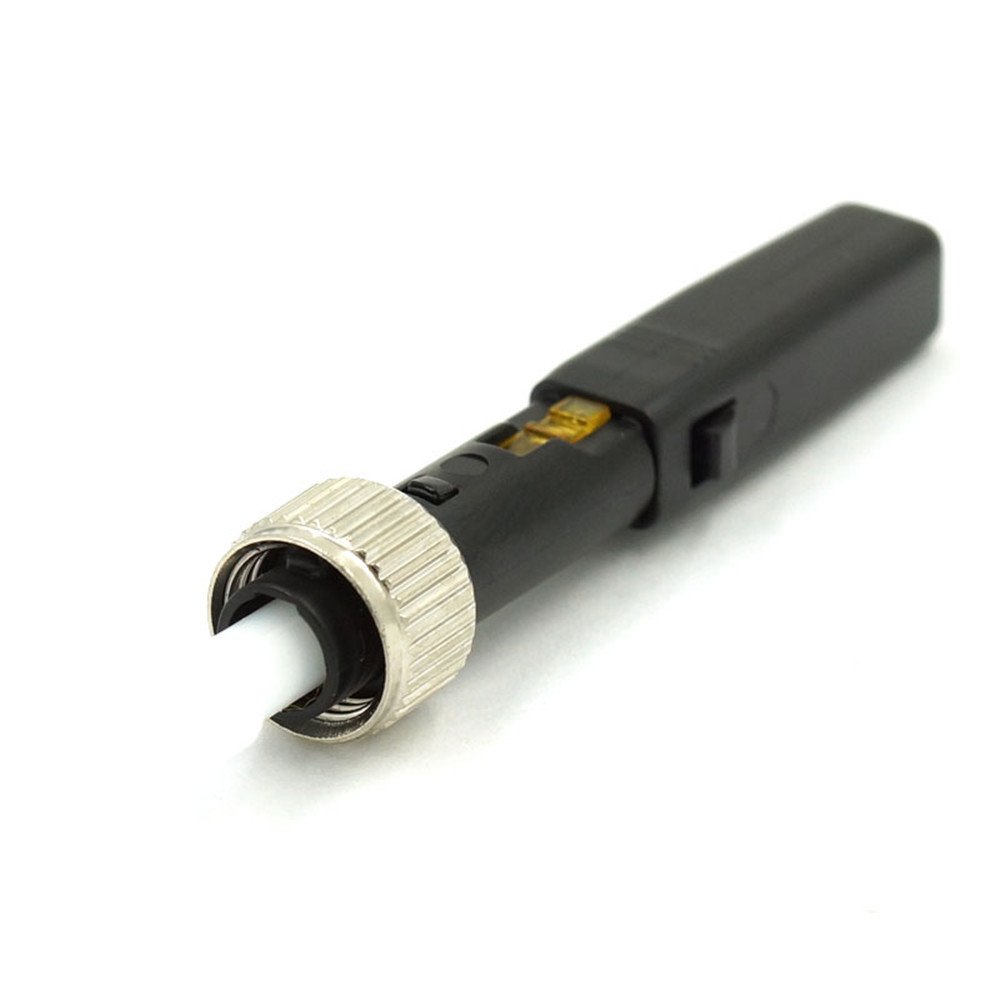

FTTH Waterproof Assembly Connector FC/UPC APC Fiber Optic Fast Connector

Description

Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.

Feature

Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splicestorage

Application

ODF,Fiber optic cabinet,Fiber optic splice closure,Fiberoptic Distribution Box,etc.
Fiber optic cabinet, Fiber optic Terminal Box,Fiber Faceplate,etc.
Optical Fiber Local Network Cabling system.
Data & Viber Local Network cabling system.
Date & Video Transmission.
Suitable for Bow Type inlet optical Cable as Well as 900um,2mm.3mm Pigtail.

Parameter

Fast Connector Specification
Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	ypical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
