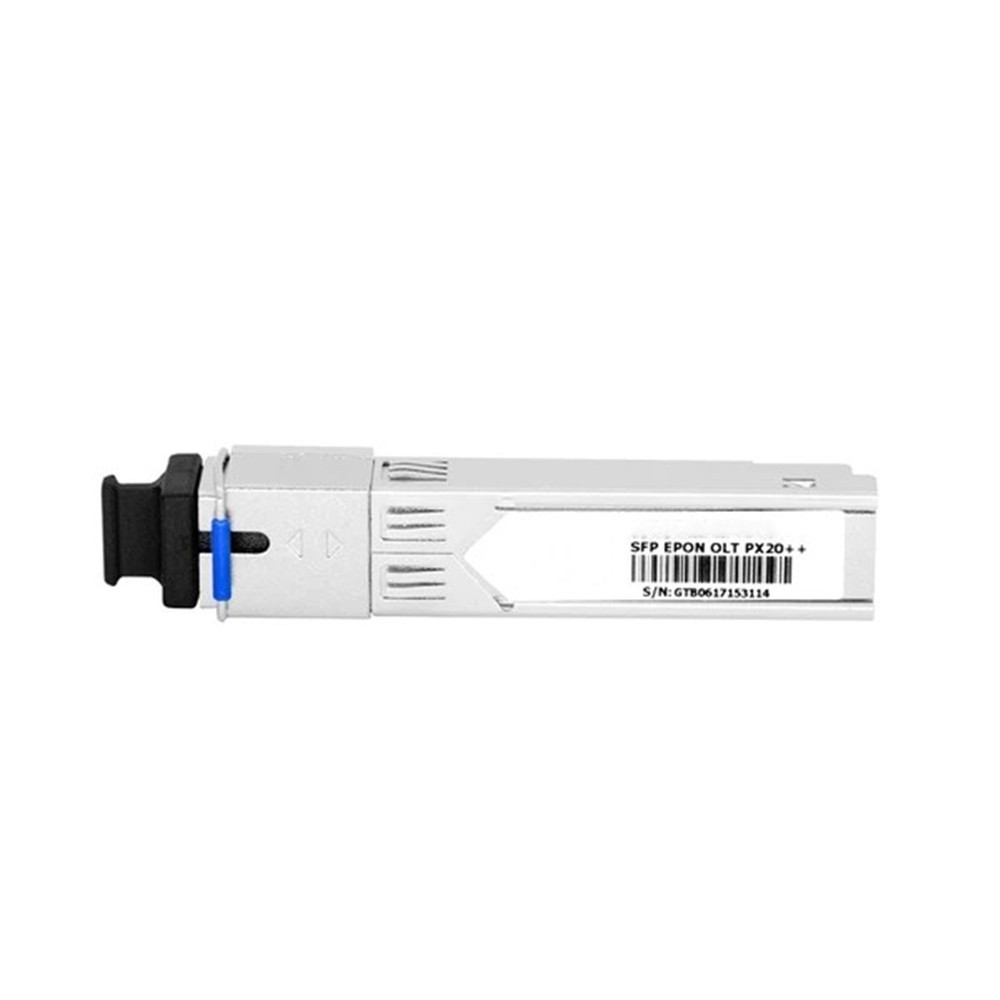

High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules

High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules

    • High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules
    • High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules
  • High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules

    Product Details:

    Place of Origin: China
    Brand Name: Wangtong
    Certification: ISO9001
    Model Number: PX20++ Module

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pair
    Price: negotiable
    Packaging Details: box
    Delivery Time: 5-10 days upon order quantitities
    Payment Terms: L/C, T/T, Western Union,Paypal, D/P
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: PX20++ Module Application: FTTH FTTB FTTX Network
    Data Rate: 1.25G Transmission Distance: 30KM
    Wavelength: 1310/1550nm Material: Stainless Steel
    Connector: SC LC Weight: 0.05KG
    High Light:

    multimode sfp transceiver

    ,

    sfp bidirectional transceiver

      High compatibility PX20++ for gepon OLT 5-7dB SFP PON modules

    Product Description

    1.25G EPON Transceiver Transceiver Module (SMF, 1490nmTx/1310nmRx, 20km, SC)

    The transceiver with supports data rate of typical 1.25 Gbps for GEPON OLT application up to 20km transmission distance, it’s designed meeting with China Telecom EPON equipment technical requirement V2.1 1000BASE-PX20+ specifications. SC rececptacle is for optical interface.



    Feature



    • Single fiber bi-directional data links symmetric 1.25Gbps application
    • 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
    • Reset-less burst-mode receiver simply the system design
    • +5~+8dBm high Average Launch Optical Power
    • More than 25dB wide dynamic range
    • 0 to 70°C operating temperature
    • Single 3.3V power supply
    • Digital diagnostic monitoring interface
    • Digital burst RSSI function to monitor the input optical power level
    • LVPECL compatible data input/output interface
    • LVTTL transmitter disable control
    • LVTTL transmitter laser fault alarm
    • LVTTL receiver loss of signal indication
    • Low EMI and excellent ESD protection
    • Class I laser safety standard IEC-60825 compliant
    • RoHS compliance for FTCS-OLEP-20X





    Parameter





    • EPON OLT PX20++ Diplexer
    • 30km
    • Tx 1490nm 1.25G, Rx 1310nm
    • 1.25G
    • SFP form-factor, SC/UPC receptacle connector
    • Commercial temperature.




    Application


    FTTH FTTB FTTX Network



    Product Pictures



    High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules













    High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules



    High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules

    High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules
    High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules

    High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules


    Wangtong Factory
    High Compatibility Optical Transceiver PX20++ For Gepon OLT 5-7dB SFP PON Modules
