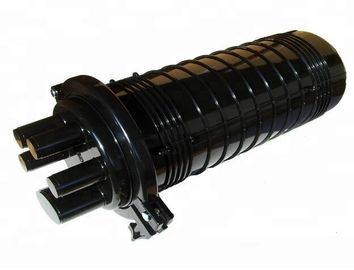

Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance

Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance

    • Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance
    • Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance
    • Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance
    • Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance
  • Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance

    Product Details:

    Place of Origin: China
    Brand Name: Wangtong
    Certification: ISO9001
    Model Number: Dome Joint Box

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiable
    Packaging Details: standard export carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: 12C Dome Enclosure Port: 12C
    Size: 85 × 330mm Splice Protective Tube: 24pcs
    Cable Entry Ports: 1 And 4, Or 2 And 2 Color: Black

    Heat Shrinkable Cable Joint 12C Dome Type Fiber Optic Enclosure Waterproof



    Description:



    Fiber Optic Splice Closures is used for protective connection of two or multiple optical cable and optic fiber distribution. It is one of commonly used equipment of user access point.Used for the outdoor connection between optical distribution cable and optical inroom cable. Available for aerial,duct,direct buried application.


    Features:



    Excellent capability to withstand earthquake, pressure, stretch. It is strong and durable



    Excellent capability to adapt to natural conditions. It can operate smoothly in varying temperatures from -40℃ ~ +80℃



    Sealing performance:The sealed packing structure can be opened and reused for more than 10 times



    Service life: 25 years in service for all major components in the splice case



    36pcs SC type adapter can be install to the pannel



    Max Capacity: 2*32 PLC Splitter with SC Adapter or less



    Max Capacity: 2*64 PLC Splitter with LC Adapter or less



    Ordering Information





    Item Appearance size
    LXWXH(mm)
    Cable capacity
    (port)
    Splice tray
    capacity(Core)
    Splice capacity
    (Core)
    XJ-H-I 465mmx188mmx 120mm 2in2out 24Cores 96
    XJ-H-II 580mmx255mmx140mm 3in3out 48Cores 96
    XJ-V-I 435mmx160mm 2in2out 24Cores 96
    XJ-V-II 430mmx138mm 2in2out 24Cores 96
    XJ-V-III 450mmx150mm 1in4out 72Cores 96



    Applications



    Great mechanical performance

    Great resisting aging performance

    High airproof, dampproof and resisting,lightning strike performance

    Can be place with the aerial cabal or buried in carth put in the pipeline



    Specifcation

    Dimension ( mm ) 85 × 330
    Weight ( Kg ) 1.5
    Round Port ( mm ) 7-19
    Cable Entry Ports 2 & 2
    Max Capacity of Cores Per Splice Tray 6 ( Single ) / 12 ( Single )
    Max Capacity of Splice Trays/ Closure 2
    Max Capacity 12 ( Single ) / 24 ( Single )
    Sealing Structure of Cable Entry Port Heat-shrinkable Sealing Structure
    Sealing Structure of Box Silicon Gum Material

    Accessories & Packaging

    Item Qty
    Splice Protective Tube According to the fiber cores
    Hanging Hook 1 Set (Aerial-hanging or Wall-mounting)
    Cables Ties 4×Splice Tray
    Heat-shrinkable Tube 1 PCS (Φ50×150(mm))
    Heat-shrinkable Tube 2 PCS (Φ28×150(mm))
    Branch Block 1 piece
    Marking Note 4×Fiber Core
    Hose Clamp

    4 PCS





    Product Pictures

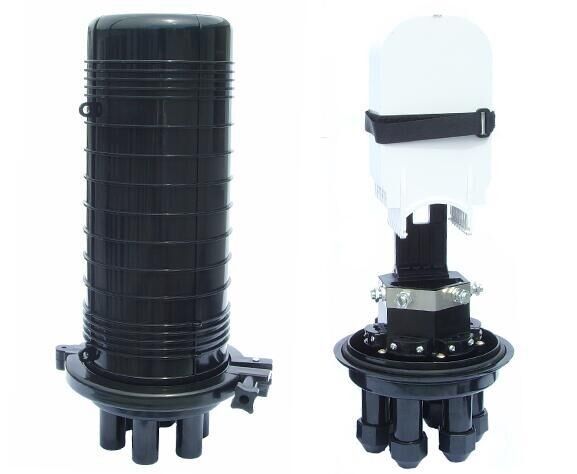

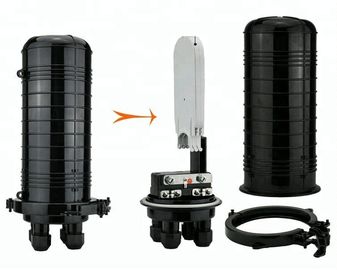

    Heat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging PerformanceHeat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging PerformanceHeat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging PerformanceHeat Shrinkable Fiber Dome Closure 12C Waterproof Resisting Aging Performance
