    Product Details:

    Place of Origin: China
    Brand Name: WANGTONG
    Certification: ISO9001
    Model Number: onu-001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: inner carton+outer carton
    Delivery Time: 7-40 days upon order quantitities
    Payment Terms: L/C, T/T, Western Union,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Power Suppl: 12V DC Transmission Distance: 20KM
    PON Port: SC Single-mode Fiber Shell: Plastic Casing
    Wavelength: Tx 1310nm, Rx1490nm Net Weight: 0.25kg
    Application: FTTH,FTTB,PON+EOC Compatible: With Zte,huawei Etc
    Warranty: 1 Year Color: White

    huawei fiberhome zte ont onu 1 or 2 port hg8310m an5506-01 f460 zxhn f600



    Description





    XPON ONU is mainly designed for FTTH,FTTO application. XPON ONU support 20km distance, and provide 1uplink GE PON port.



    ONU together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.



    ONU has 1 PON port and one 10/100/1000BASE-T ports



    Feature

    • Support port-based rate limitation and bandwidth control;
    • Support EPON and GPON, and switch mode automatically.
    • Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
    • Support data encryption, group broadcasting, port Vlan separation, etc.
    • Support ACL and SNMP to configure data packet filter flexibly
    • Support ONU auto-discovery/Link detection/remote upgrade of software;
    • Support VLAN division and user separation to avoid broadcast storm;
    • Support power-off alarm function ,easy for link problem detection
    • Support broadcasting storm resistance function
    • Support Dynamic Bandwidth Allocation (DBA)
    • Specialized design for system breakdown prevention to maintain stable system
    • Up to 20KM transmission Distance



    Application



    • Typical Solution:FTTH,FTTB,PON+EOC
    • Typical Business:INTERNET,IPTV,VOD,IP Camera

    Parameter





    Item Parameter
    Interface PON Interface

    1 EPON/GPON optical interface

    Meet 1000BASE-PX20+ standard

    Symmetric1.25Gbpsupstream/downstream
    SC single-mode fiber

    split ratio:1:64

    Transmission distance 20KM

      User Ethernet
    Interface

    1*10/100M auto-negotiation

    1*10/100/1000M auto-negotiation
    Full/half duplex mode
    RJ45 connector
    Auto MDI/MDI-X
    100m distance

      Power Interface 12V DC Power supply
    Performance Parameters

    PON

    Optical

    Parameter

    Wavelength: Tx 1310nm, Rx1490nm

    Tx Optical Power: -1~4dBm

    Rx Sensitivity: -25dBm

    Saturation Optical Power: -3dBm

    Connector Type: SC

    Optical Fiber: 9/125ɥm single-mode fiber

      Data Transmission
    Parameter

    PON Throughput: Downstream 950Mbps; Upstream 930Mbps
    Ethernet: 100Mbps,1000Mbps

    Packet Loss Ratio:<1*10E-12
    latency: <1.5ms

      Business
    Capability

    Layer 2 wire speed switching

    Support VLAN TAG/UNTAG,VLAN conversion

    Support Port-based speed limitation

    Support Priority classification

    Support storm control of broadcast

    Network Management

    Management

    Mode

    Support IEEE802.3 QAM, ONU can be remotely managed by OLT

    Support Remote management through SNMP and Telnet

    Local management

      Management
    Function
    Status monitor, Configuration management, Alarm management,
    Log management
    Indicator LED Indicator

    PWR: Power up or down

    SYS: System instructions

    OPTIN: Optical Link Status

    LINK:ONU Registered

    LAN: Link Status of Ethernet Interface

    Physical Features Shell Plastic casing
      Power

    External 12V 0.5A AC/DC power supply adapter

    Power consumption: <2W(),<2.3W(PL311HC)

      Physical
    Specifications

    Item Dimension:110mm(L) x 70mm(W) x 30mm (H)

    Item weight:0.1kg

      Environmental
    Specifications

    Operating temperature: 0 to 50 ºC

    Storage temperature: -40 to 85 ºC

    Operating humidity: 10% to 90% (Non-condensing)

    Storage humidity: 10% to 90% (Non-condensing)

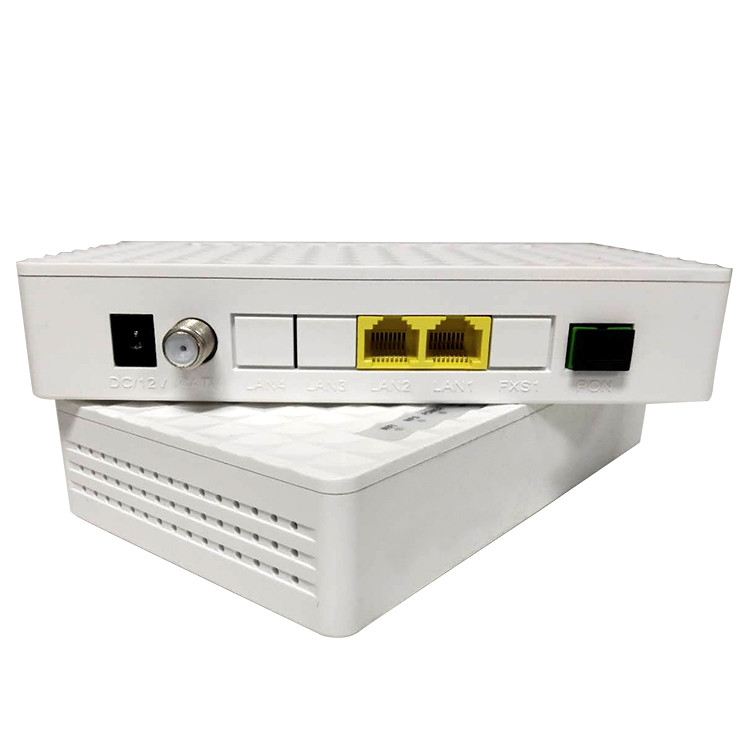

    Product Pictures
