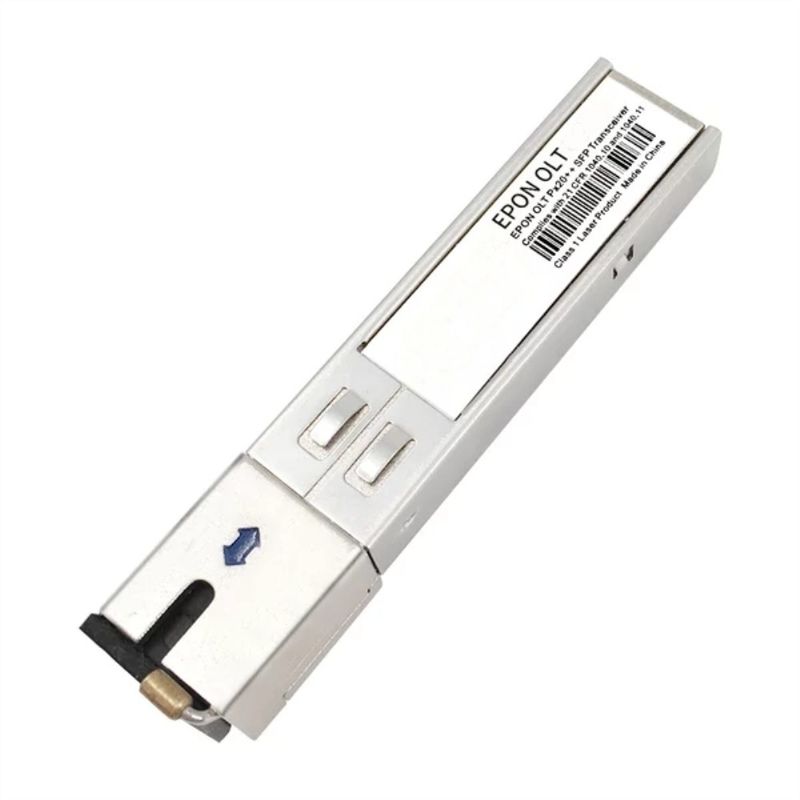

EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance

EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance

    • EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance
    • EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance
    • EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance
    • EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance
  • EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance

    Product Details:

    Place of Origin: China
    Brand Name: Wangtong
    Certification: ISO9001
    Model Number: EPON OLT PX2+

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: 10pc/box
    Delivery Time: 5-10 days upon order quantitities
    Payment Terms: L/C, T/T, Western Union,Paypal
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: EPON OLT PX2+ Data Rate: 1.25G
    Transmission Distance: 20km Wavelength: 1490nm/1310nm
    Fiber Type: Duplex Certification: CE RoHS
    Powe Supply: +3.3V Connector: SC/UPC

    EPON OLT SFP PX2+ Optical Module 1.25 G 20Km





    Feature



    • Compatible IEEE 802.3ah 1000BASE-PX20++ GEPON application
    • Applied to EPON OLT for a Single Fiber Bi-directional EPON System
    • SFP, Single SC connector, Digital Diagnostic Interface Compliant with SFF-8472
    • Burst Digital Receiving Signal Strength Indication (RSSI)
    • Single 3.3V power supply
    • Operation case temperature -10~70°C for commercial
    • RoHS-6 compliance



    Application



    • 1000BASE-PX20++ GEPON application





    Parameter



    Absolute Maximum Ratings



    Parameter Unit Min. Typical Max.
    Power Supply V 0   4.2
    Storage Ambient Temperature °C -40   85
    Operating Case Temperature °C -40   85
    Operating Relative Humidity % 5   95
    Receiver Damaged Threshold dBm 0



    Operating Condition





    Parameter Unit Min. Typical Max.
    Power Supply V 3.1 3.3 3.5
    Operating Case Temp for C-temp °C -10   70
    Operating Relative Humidity % 5   95
    Data Rate(TX/RX) Gbit/s   1.25





    Optical Characteristics





    Parameter Unit Min. Typ. Max.
    TX Central Wavelength nm 1480   1500
    Spectral Width (-20dB) nm     1
    SMSR dB 30
    Mean Launched Power (EOL) dBm 5   9
    Mean Launched Power (TX Off) dBm     -39
    Extinction Ratio(Note 1) dB 9
    TX Total Jitter UI     0.43
    Rise/Fall Time (20%-80%) ps     260
    RIN15OMA dB/Hz     -115
    Optical Return Loss Tolerance dB     -12
    Transmitter and dispersion Penalty(20km G.652)



    dB





    2.3

    TX Optical Eye Mask Compliant With IEEE Std 802.3ah™-2004
    Receive Wavelength nm 1260   1360
    Sensitivity (Note 2) dBm     -33
    Overload dBm -6
    Dynamic Rang dB 25
    Receiver Threshold Settling Time ns     250
    RX Dynamic Range(Note 3) dBm -30   -6
    LOS-Deassert dBm     -34
    LOS-Assert dBm -45
    SD Hysteresis dB 0.5   6
    Receiver Reflectance dB     -12



    Note:

    1. Measured with PRBS 27-1 test pattern @1.25Gbps, Low Pass Filter is on.
    2. Measured with a PRBS 27-1 test pattern @1.25Gbps and ER=10dB, BER <10-12 3, RX Dynamic Range Definition



    Ordering Information



    Ordering P/Ns Description





    EPON OLT PX20++

    EPON OLT PX20++ Diplexer, 30km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature, V2 version mechanical

    housing.



    Product Pictures


    EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km DistanceEPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km DistanceEPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km DistanceEPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance


    EPON OLT PX2+ Optical Transceiver Module 1490nm 1.25 G 20Km Distance
